Microsoft Entra Connect Setup

Prerequisites Checklist

make sure you’ve got:

•✅Windows Server 2025 VM joined to your on-prem AD domain

•✅On-prem Active Directory already configured (AD DS role installed)

•✅Azure AD tenant ready (with Global Admin access)

•✅Internet access from the VM

•✅Optional but recommended: a dedicated service account for Azure AD Connect

Step-by-Step:

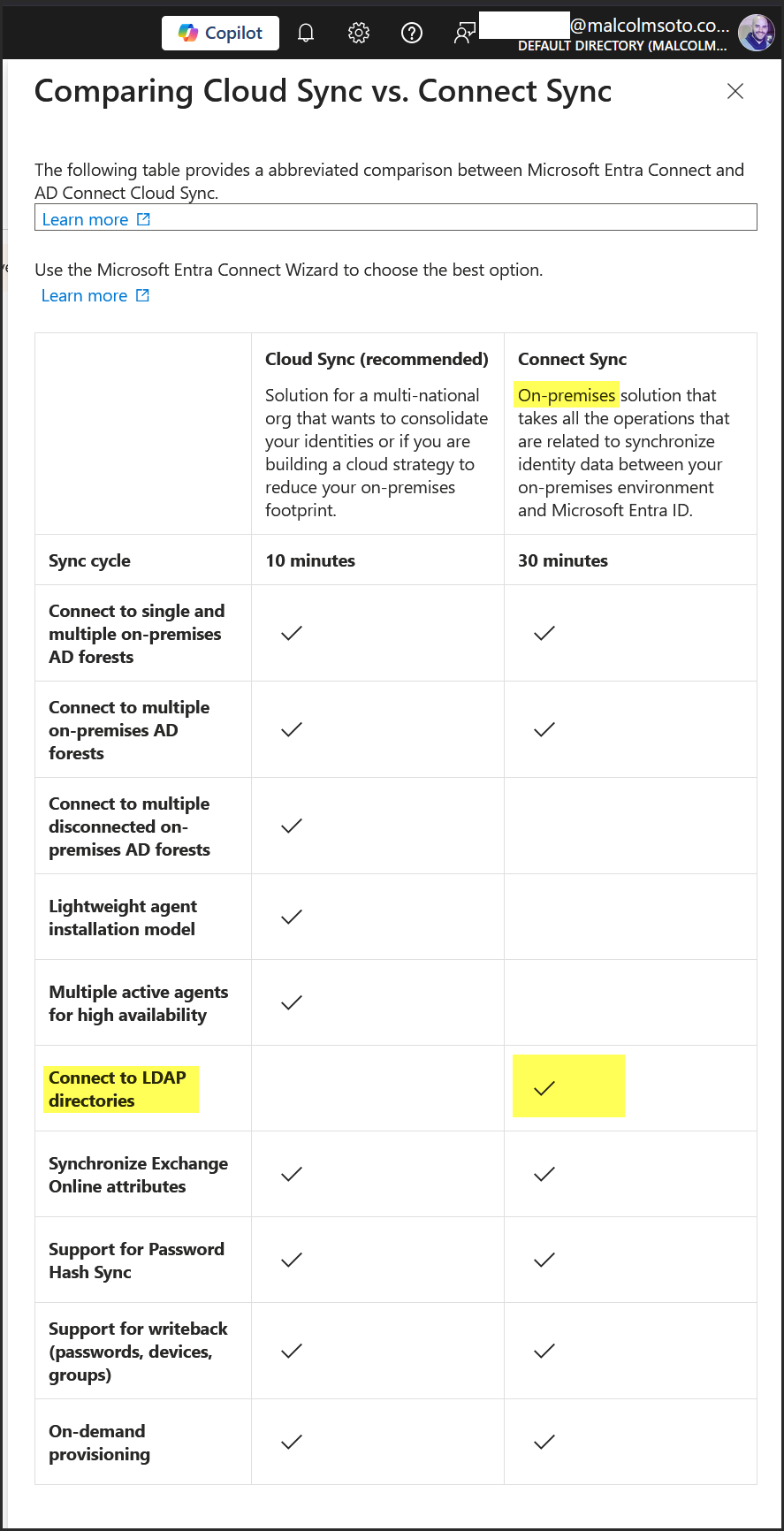

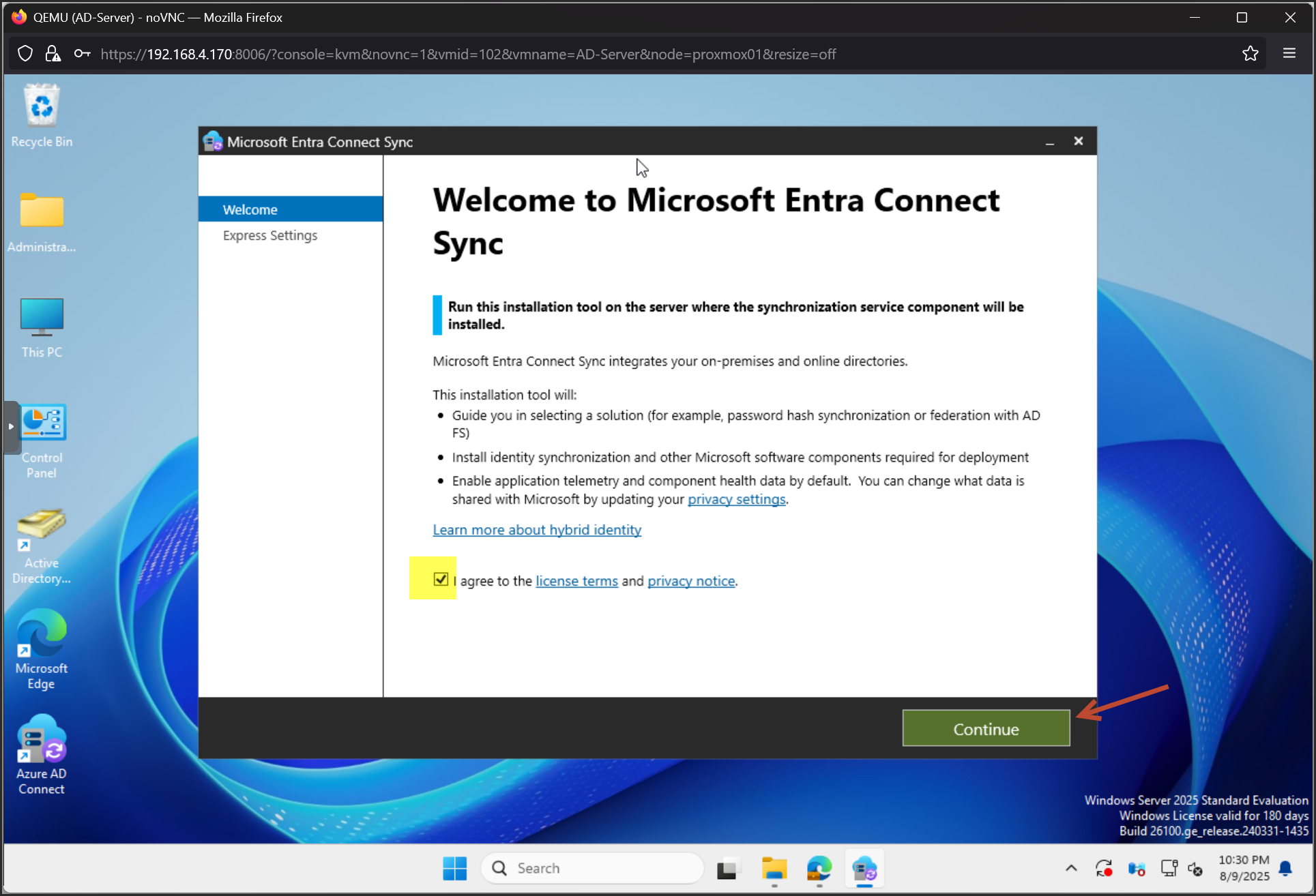

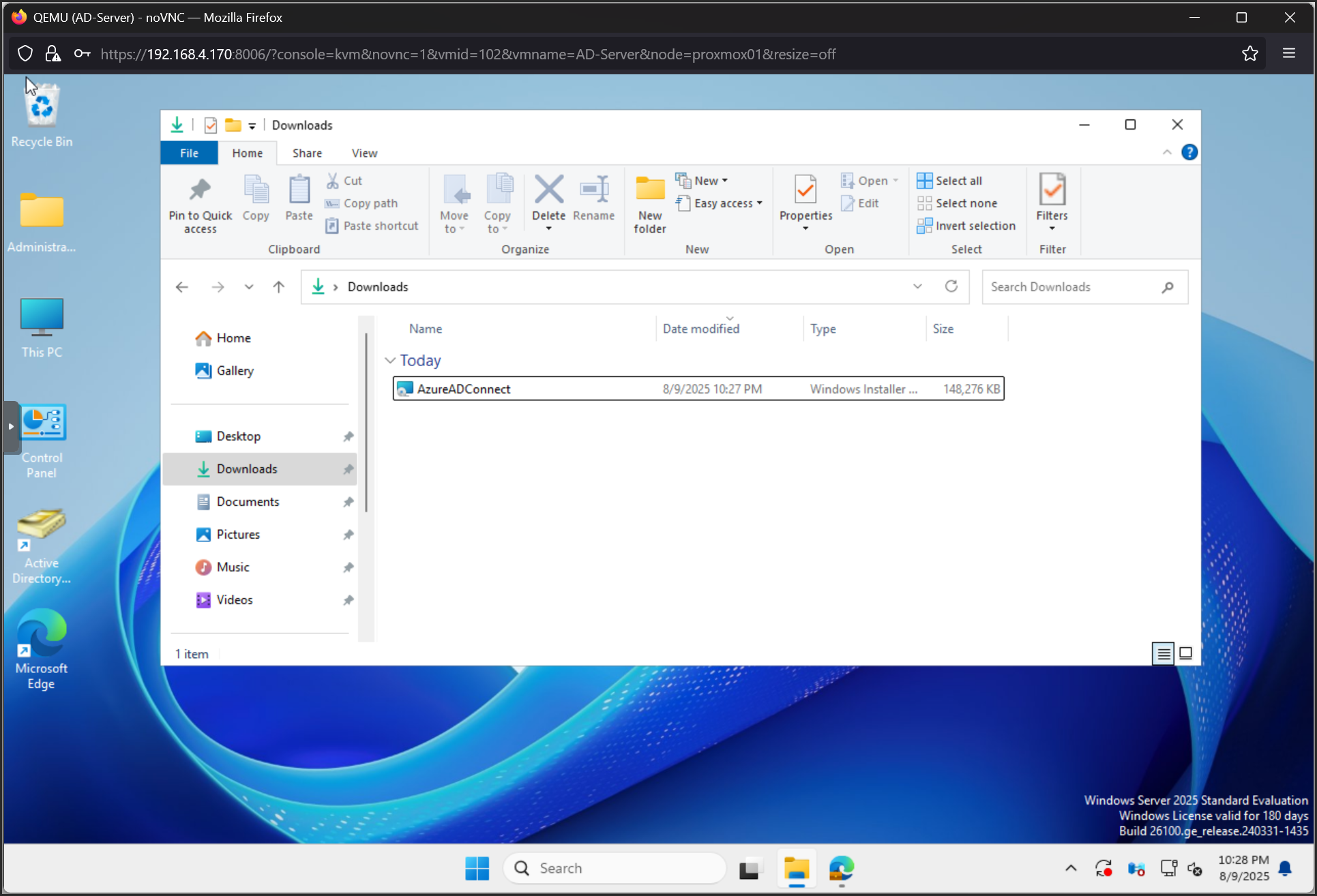

DownloadEntraConnect– Cloud Sync

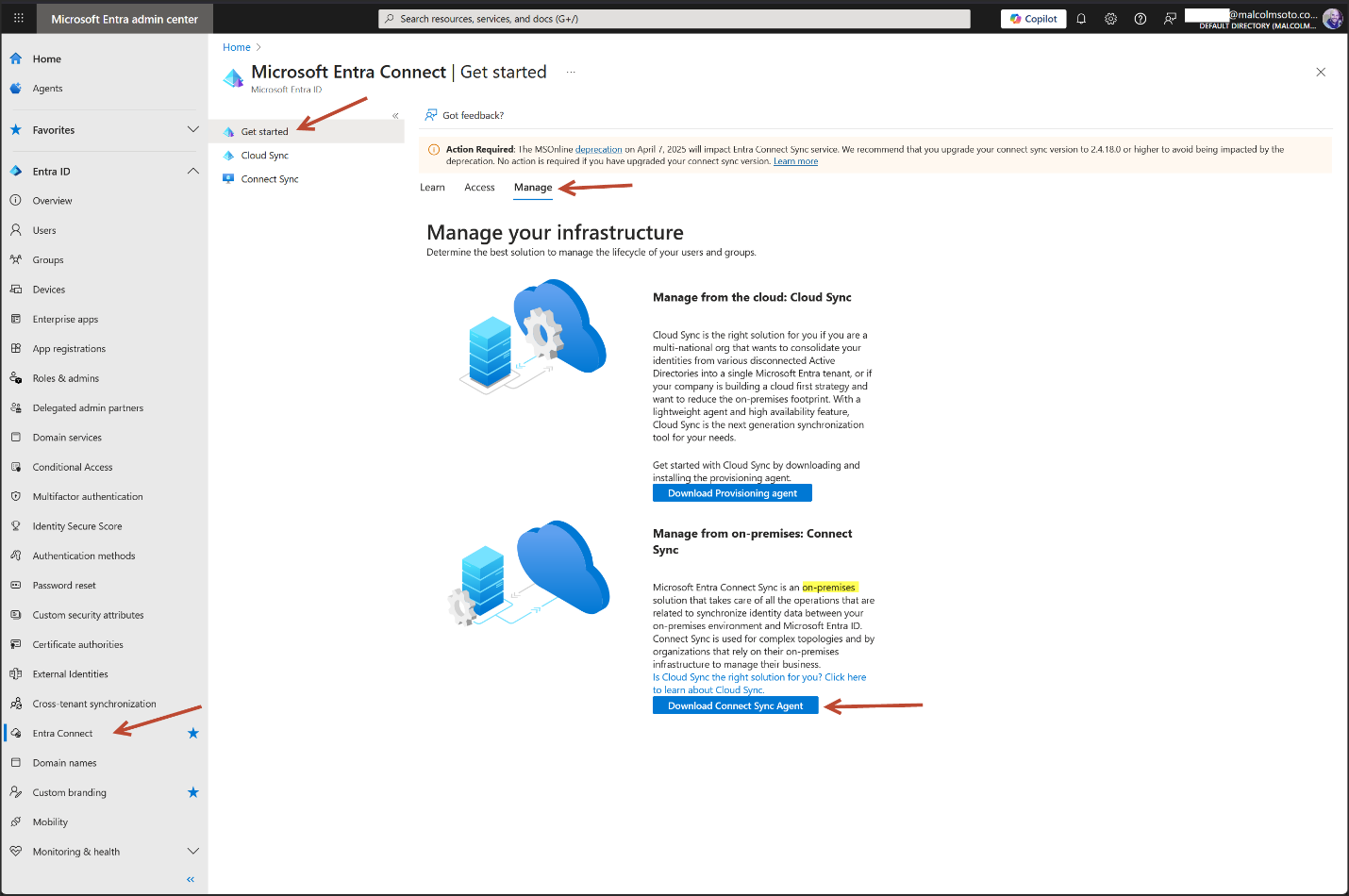

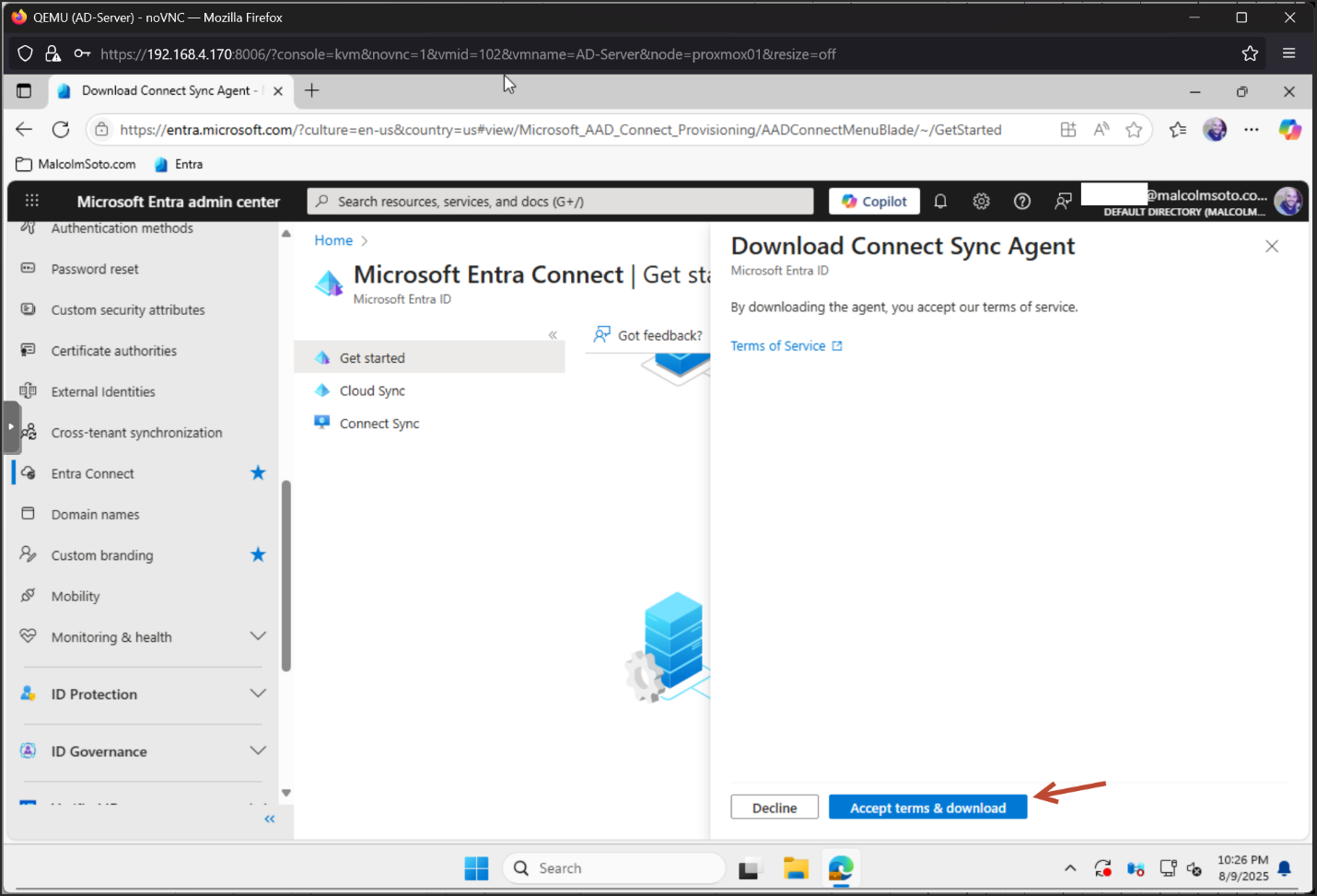

Get the latest version fromyour Entra Portal:https://entra.microsoft.comClick Entra Connect >Get Started > Manage > Download Connect Sync Agent

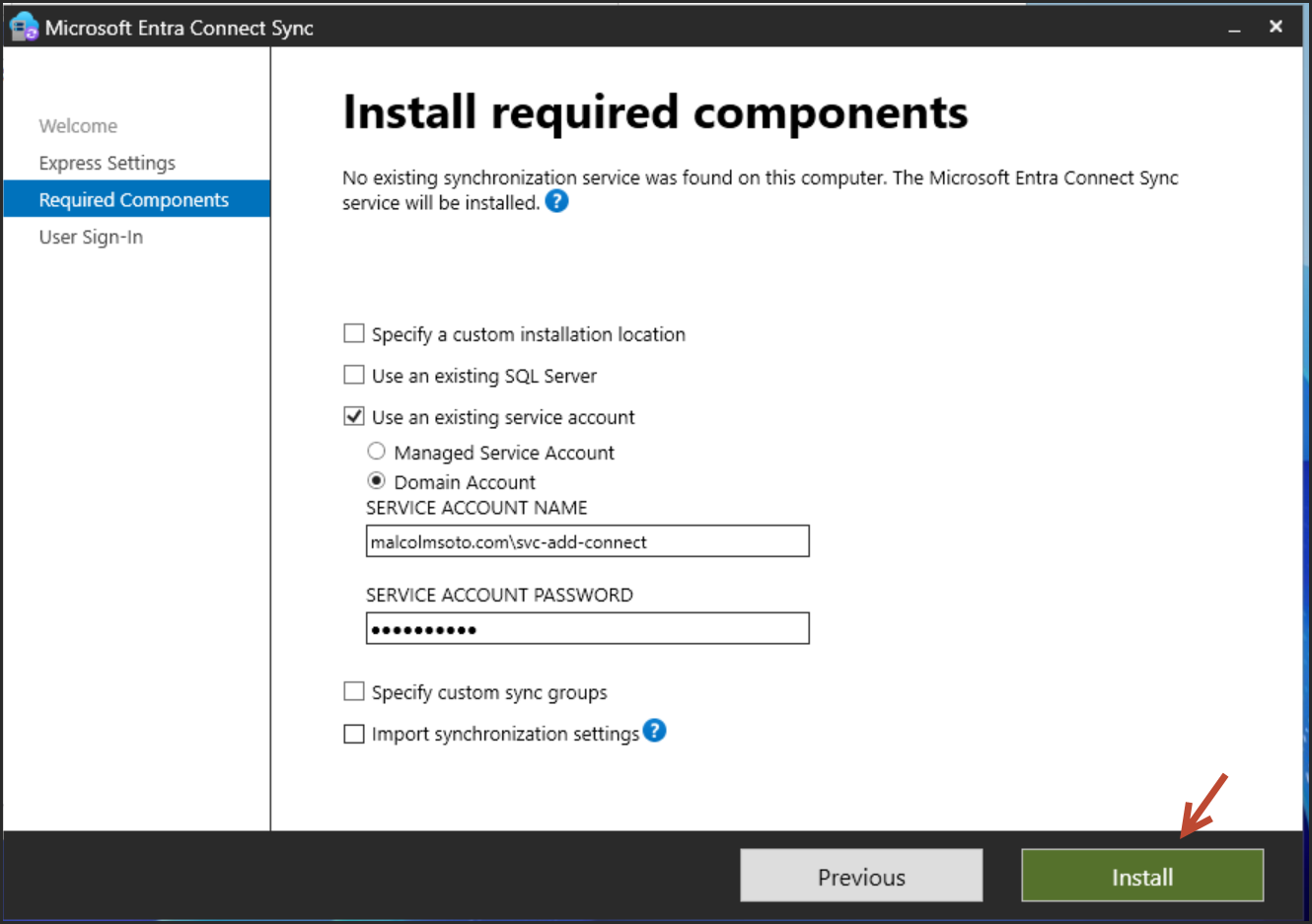

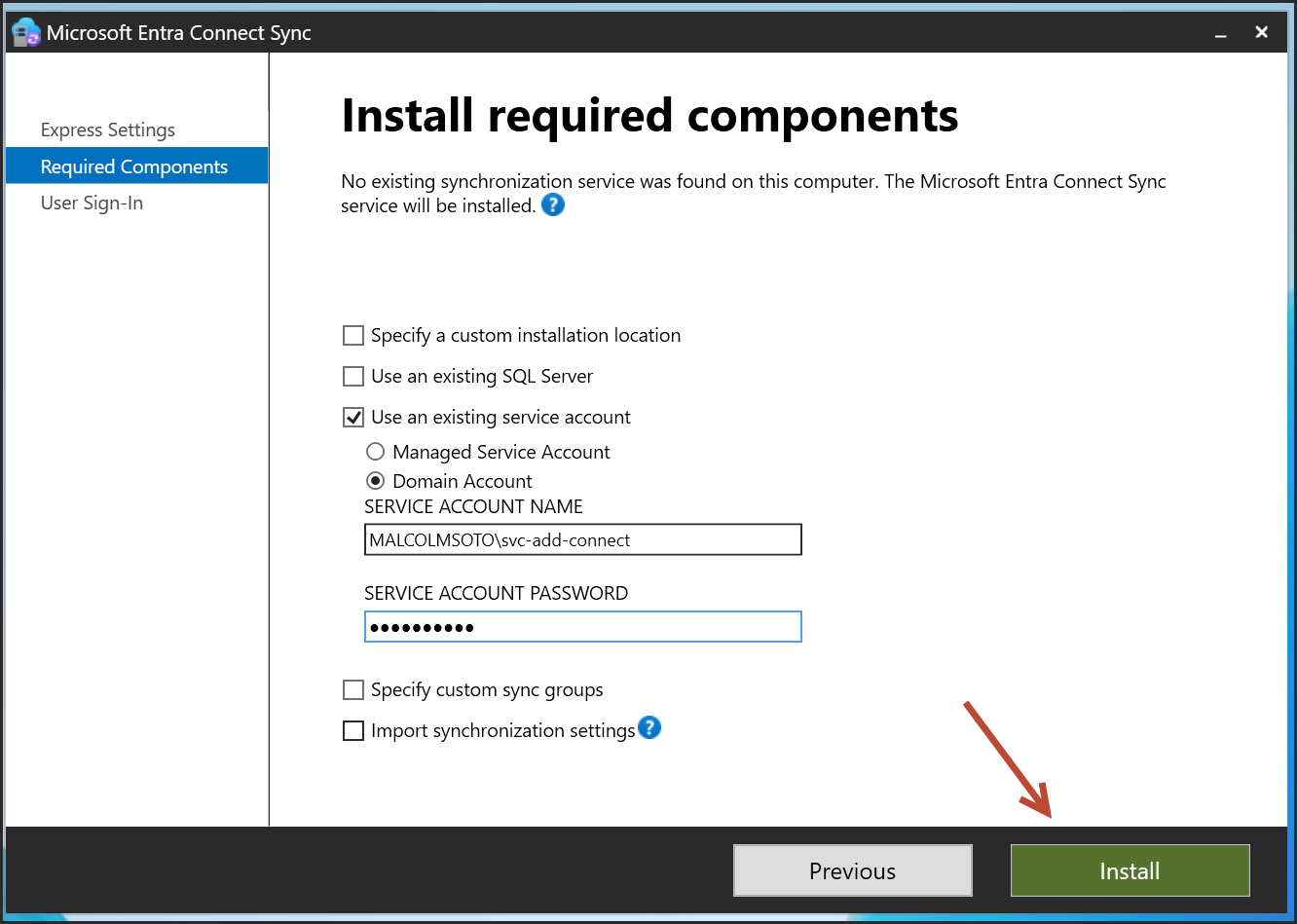

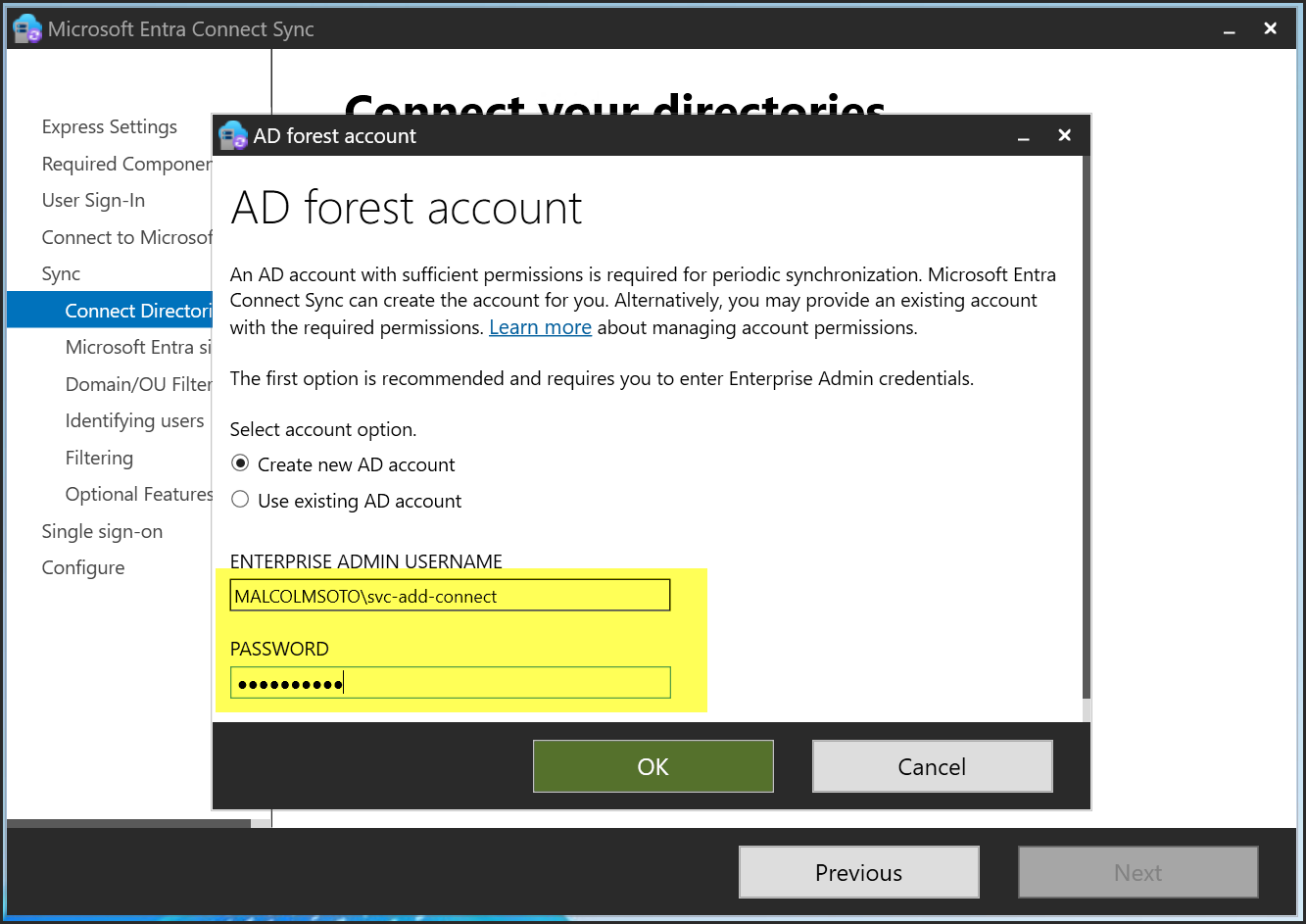

Make a service account – password don’t expire

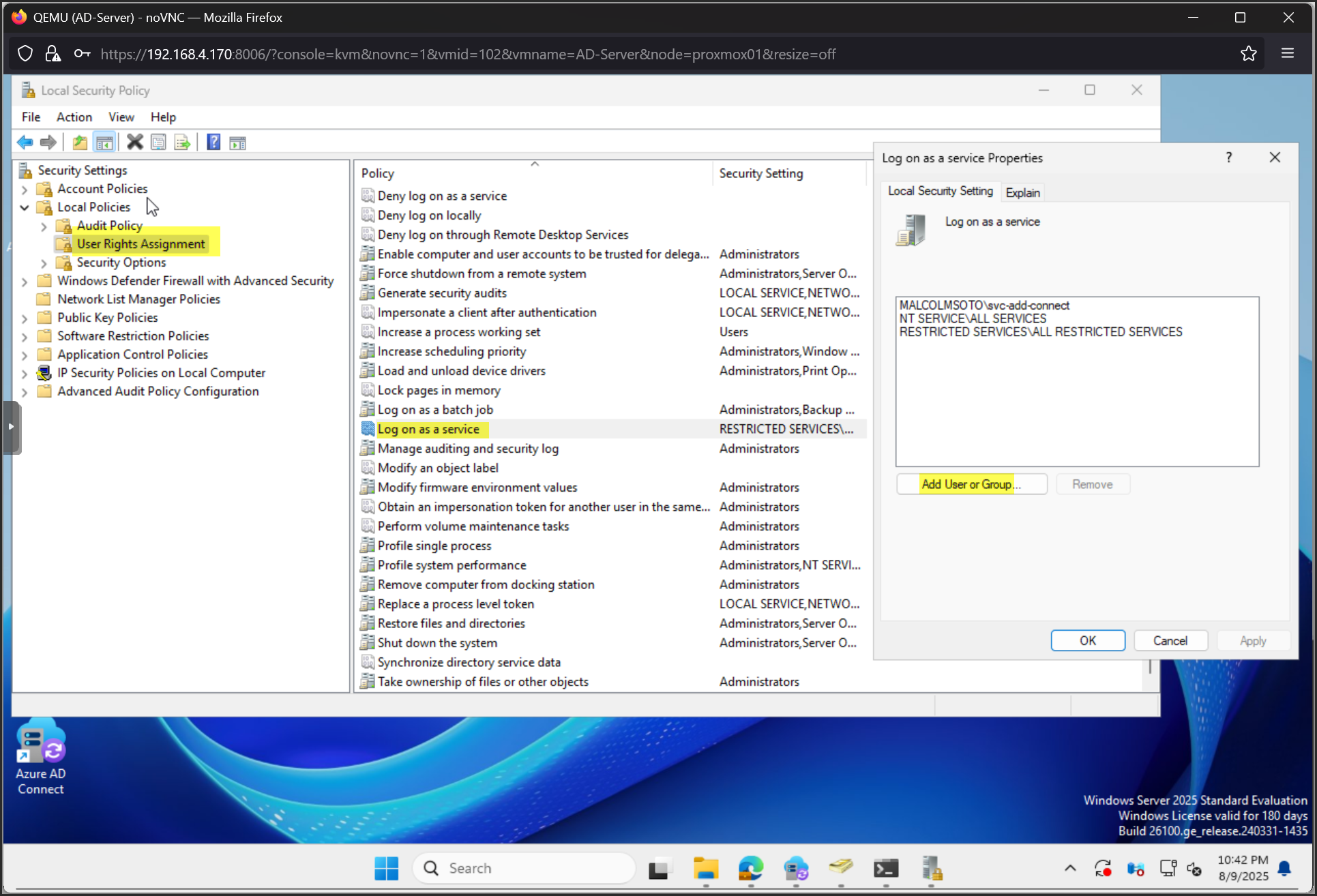

Add the new account in the “Log on as a service” insecpol.msc

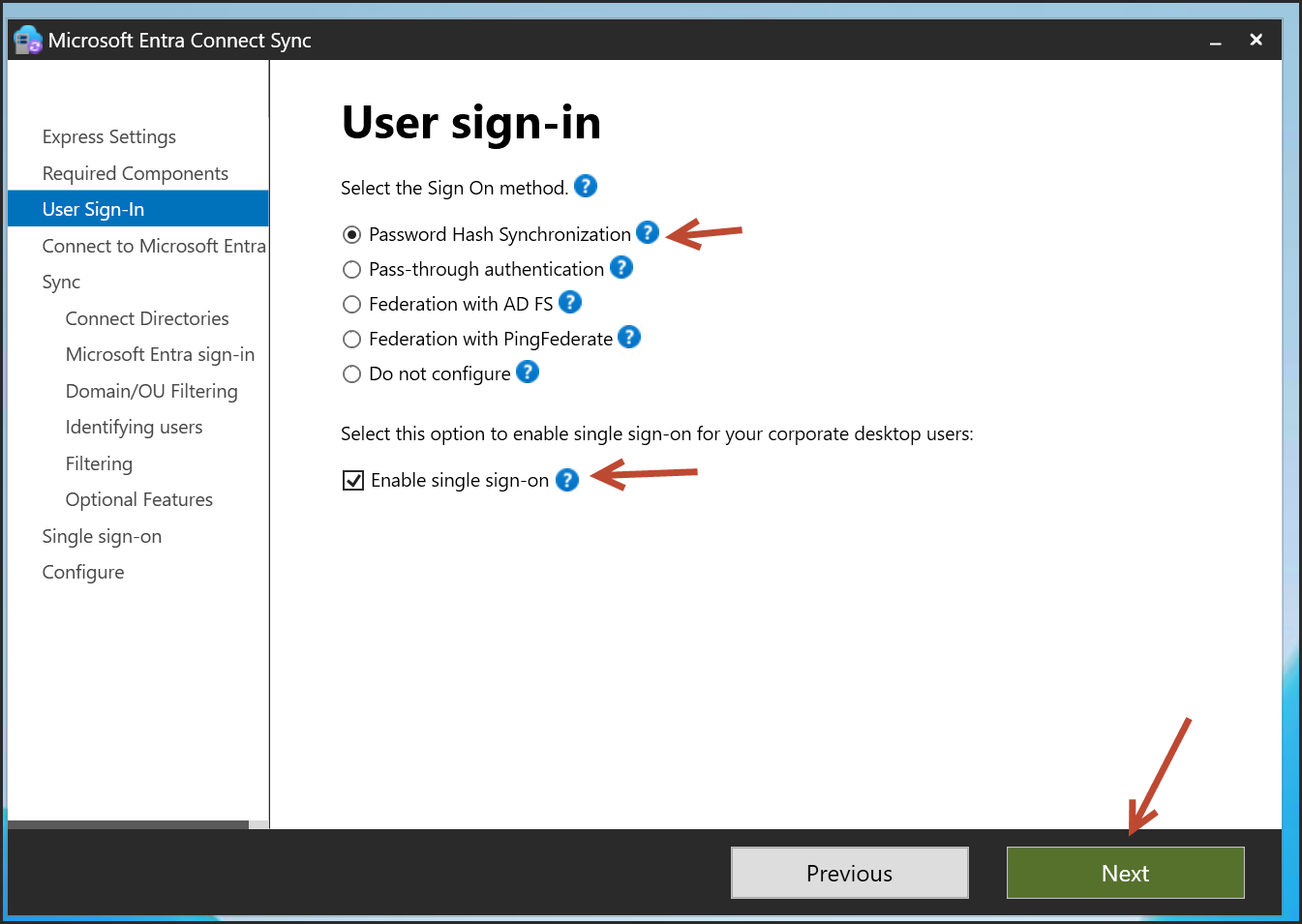

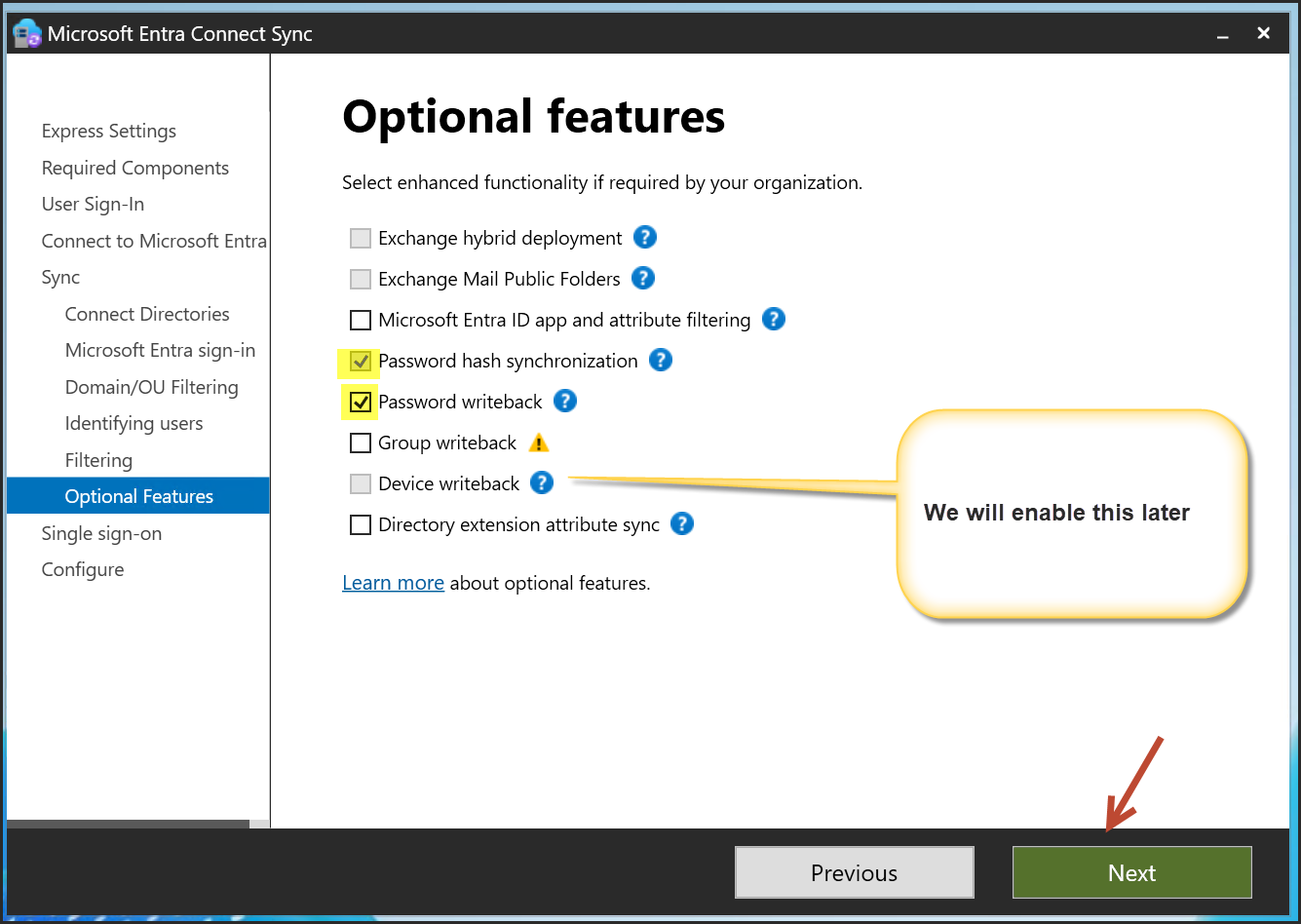

✅Recommended Selection

•Password Hash Synchronization

This is the simplest and most reliable method for hybrid identity in a lab or small enterprise setup. It syncs password hashes from your on-prem AD to Azure AD, allowing users to sign in with the same credentials.

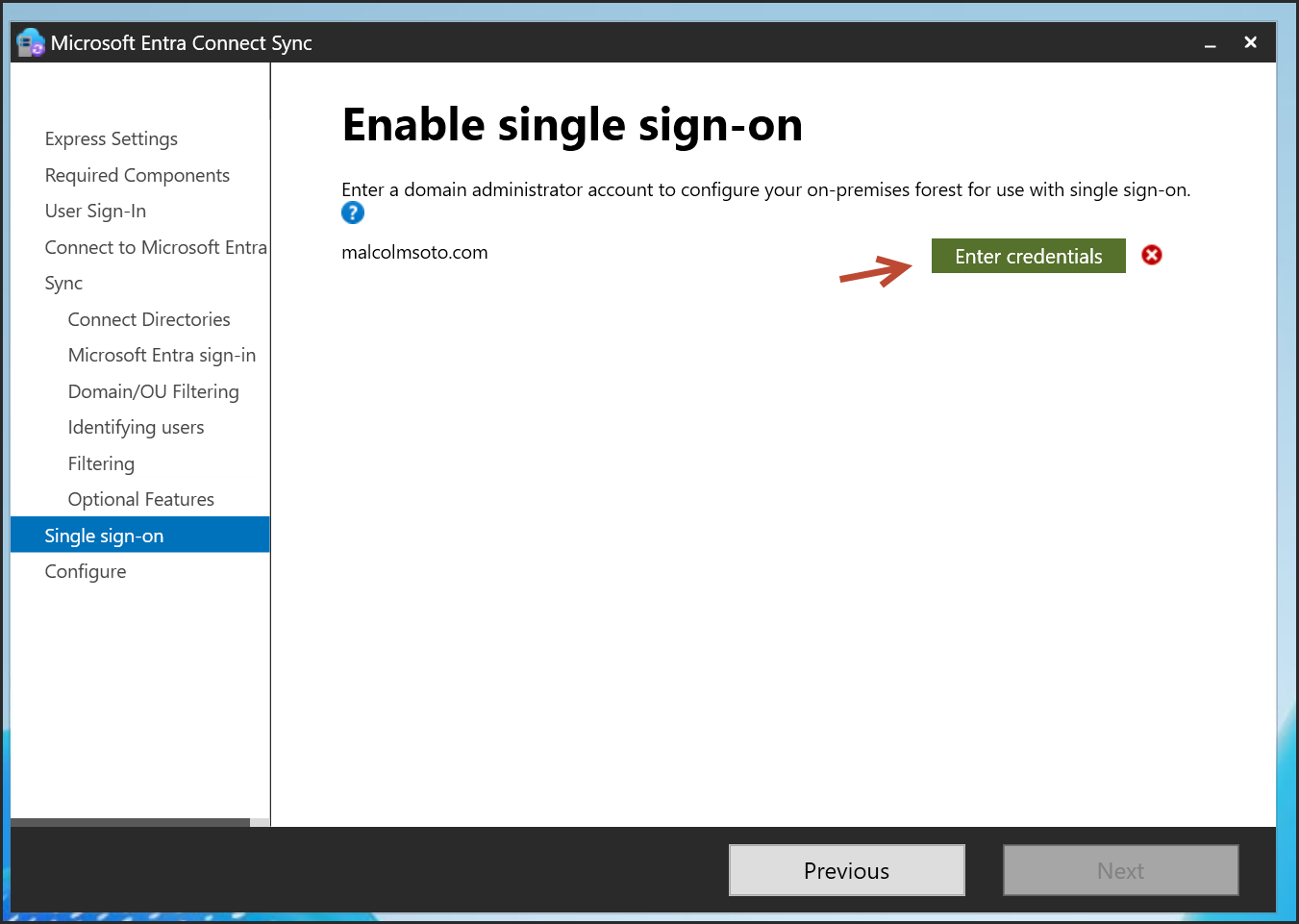

•Optional: Enable Single Sign-On (SSO)

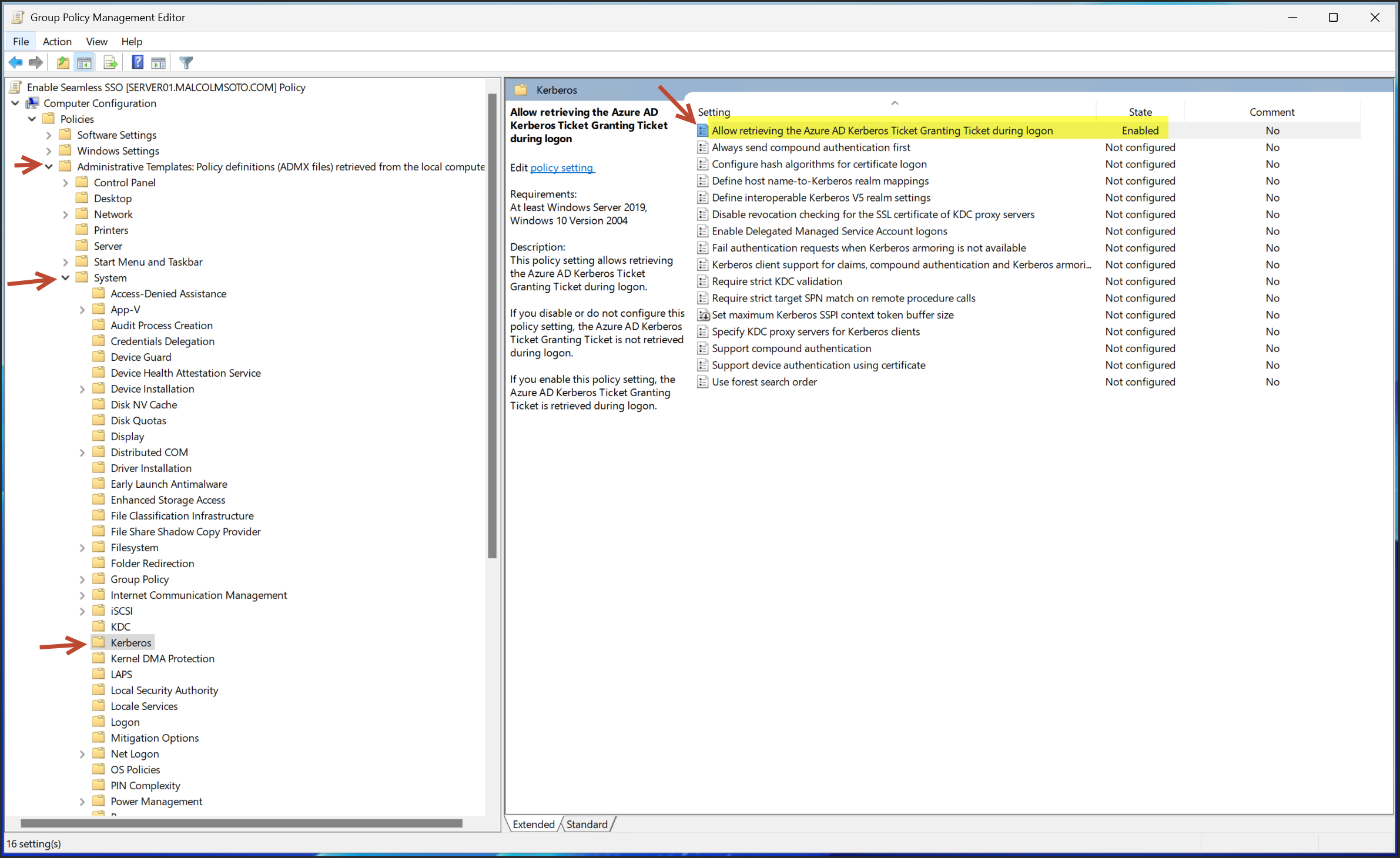

You can check this box if you want seamless sign-in for domain-joined devices. It requires a small change to your on-prem AD (adds a computer account and configures Kerberos SSO). Since you're testing Conditional Access and Autopilot, enabling SSO will give you a smoother experience.

When to Use Other Options

•Pass-through authentication:

Only if you need real-time password validation against your on-prem AD. More complex and less resilient than hash sync.

•Federation with AD FS / PingFederate:

Enterprise-grade setups with external identity providers. Not needed for your lab.

•Do not configure:

Only if you're planning to set up sign-in manually later.
